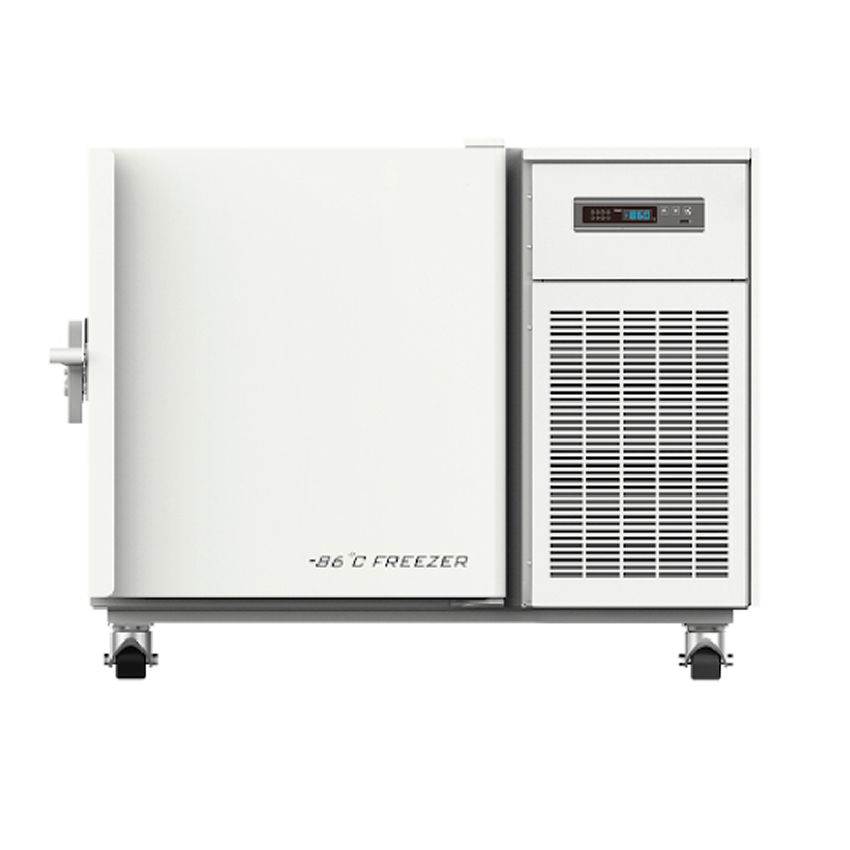

EL-U-4K Elite Series : -86°C Ultra Low 4 cuft Freezer
EL-U-4K Elite Series : -86°C Ultra Low 4 cuft Freezer
EL-U-4K Elite Series : -86°C Ultra Low 4 cuft Freezer
EL-U-4K Elite Series : -86°C Ultra Low 4 cuft Freezer |
Compact Capacity, Lab-Ready 96 L (3.39 cu ft) chamber with two inner doors and one stainless steel shelf; holds up to sixty 2″ cryo box racks. |
 |
Comprehensive Alarm Protection High/low temperature, condenser high-temp, sensor failure, power failure, and high-room-temperature alarms with audible/visual and remote outputs. |
 |
7″ Touch Control with USB Intuitive touchscreen controller simplifies set-points, logs, and updates; manual defrost for consistent long-term performance. |
 |
Built for Tight Spaces Galvanized, powder-coated shell with PUF+VIP insulation; test port, pressure-balance port, lockable door, and casters for easy placement. |
Key Features
- Temperature range: −40 to −86 °C; cooling performance −80 °C
- Self-cascade direct cooling; manual defrost
- 7″ touchscreen controller with USB port
- Alarm suite: high/low temp, condenser high temp, sensor failure, power failure, high room temp; remote alarm terminal
- 96 L / 3.39 cu ft capacity; 2 inner doors; 1 stainless steel shelf; up to 60 × 2″ box racks
- PUF + VIP insulation; 90 mm cabinet / 70 mm door
- Accessories: casters, test hole, pressure-balance port, lockable door, handle
- Electrical: 220 V/50 Hz (110 V/60 Hz available); 460 W; ~5.5 kWh/24 h
- Exterior 795 × 680 × 815 mm (31.3 × 26.8 × 32.1 in)

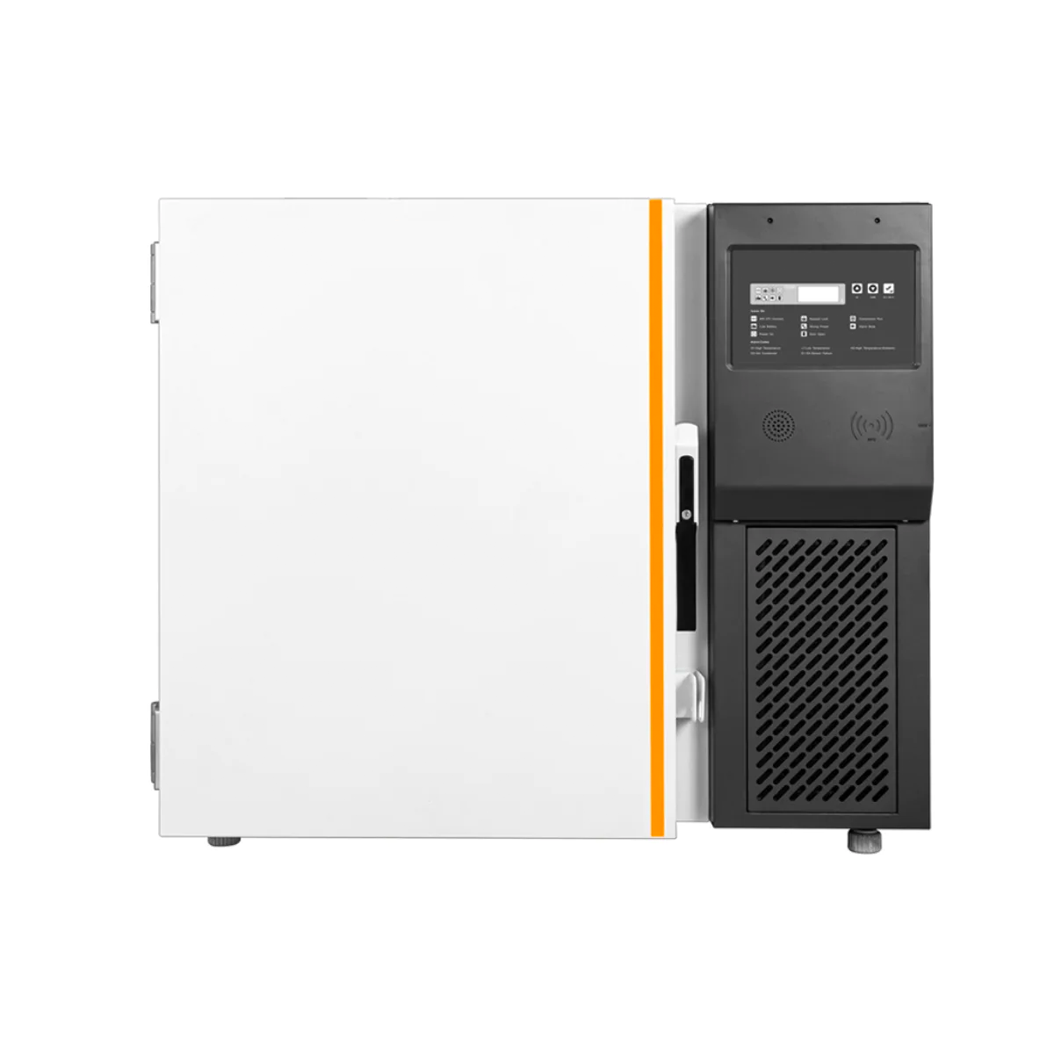

GL-U-4D Glacier Series : -86°C Ultra Low 4 cuft Freezer
GL-U-4D Glacier Series : -86°C Ultra Low 4 cuft Freezer
GL-U-4D Glacier Series : -86°C Ultra Low 4 cuft Freezer
GL-U-4D Glacier Series : -86°C Ultra Low 4 cuft Freezer |
3.81 cu ft Capacity 108 L chamber with 1 shelf and room for up to 9,000 × 2 ml cryo tubes—ideal for compact lab footprints. |
|
Comprehensive Alarm Protection High/low temperature, high ambient & condenser high-temp, power failure/low battery, sensor error, and door-ajar; remote alarm optional. |
|
Microprocessor Control & LED Display Accurate digital control (0.1 °C resolution) with a bright LED readout for quick checks and reliable operation. |
|
Durable, Lab-Ready Build Coated-steel exterior, galvanized-steel interior, anti-condensation door, cable port and castors; 115 V/60 Hz, 850 W, ~6.1 kWh/24 h. |
Key Features
- Operating range: −40 to −86 °C; uniformity ±2 °C; accuracy 0.1 °C
- Direct cooling with manual defrost for stable ultra-low temperatures
- Microprocessor controller with LED display
- Alarm suite: temperature, ambient/condenser high-temp, power failure, low battery, sensor error, door ajar (remote optional)
- 108 L / 3.81 cu ft capacity; 1 shelf; up to 9,000 × 2 ml tubes
- High-quality coated-steel shell; galvanized-steel chamber; lockable, anti-condensation door
- Cable port and castors for easy integration and mobility
- Electrical: 115 V/60 Hz; 850 W; ~6.1 kWh/24 h; 9.8 A

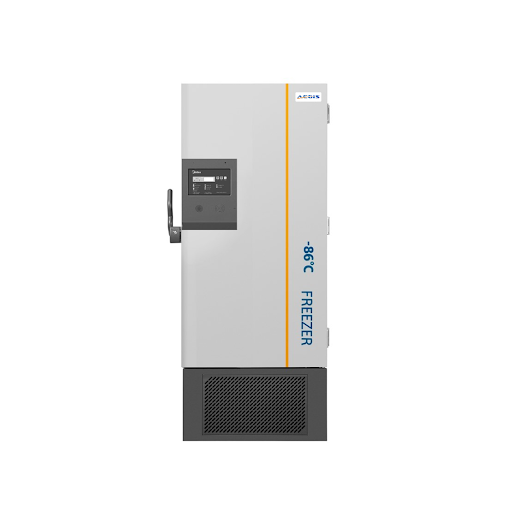

GL-U-16D Glacier Series : -86°C Ultra Low 16 cuft Freezer
GL-U-16D Glacier Series : -86°C Ultra Low 16 cuft Freezer
GL-U-16D Glacier Series : -86°C Ultra Low 16 cuft Freezer
GL-U-16D Glacier Series : -86°C Ultra Low 16 cuft Freezer |
16.17 cu ft High-Capacity Storage 458 L stainless-steel interior with three shelves; accommodates up to 32,000 × 2 ml cryo tubes. |
|
Comprehensive Alarm Protection High/low temperature, high ambient & condenser high-temp, power failure/low battery, sensor error, and door-ajar; remote alarm optional. |
| Microprocessor Control & LED Display Accurate digital control with 0.1 °C resolution and a bright LED readout for quick, reliable checks. |
|
| Built for Demanding Labs Coated-steel exterior, stainless interior, anti-condensation door, cable port and castors; 115 V/60 Hz, 1190 W, ~11.3 kWh/24 h. |
Key Features
- Operating range: −40 to −86 °C; uniformity ±2 °C; accuracy 0.1 °C
- Self-cascade refrigeration; direct cooling; manual defrost
- Microprocessor controller with LED display
- Alarm suite: temperature, ambient/condenser high-temp, power failure, low battery, sensor error, door ajar (remote optional)
- 458 L / 16.17 cu ft capacity; 3 shelves; up to 32,000 × 2 ml tubes
- Stainless-steel chamber; coated-steel shell; lockable, anti-condensation door
- Cable port and castors for easy integration and mobility
- Electrical: 115 V/60 Hz; 1190 W; ~11.3 kWh/24 h; 11.8 A
GL-U-30D Glacier Series : -86°C Ultra Low 30 cuft Freezer
GL-U-30D Glacier Series : -86°C Ultra Low 30 cuft Freezer
GL-U-30D Glacier Series : -86°C Ultra Low 30 cuft Freezer
GL-U-30D Glacier Series : -86°C Ultra Low 30 cuft Freezer |
High-Capacity Storage 29.59 cu ft (838 L) with stainless-steel interior and three shelves; up to 60,000 × 2 ml cryo tubes. |
|
Comprehensive Alarm Protection High/low temperature, high ambient & condenser high-temp, power failure/low battery, sensor error, door ajar; remote alarm optional. |
| Microprocessor Control & LED Display Accurate digital control (0.1 °C resolution) with clear LED readout for quick checks and reliable operation. |
|
| Built for Labs High-quality coated-steel exterior, stainless interior, anti-condensation door, cable port and castors; 115 V/60 Hz, 2030 W, 14.3 kWh/24 h. |
Key Features
- −40 to −86 °C operating range; ±2 °C uniformity; 0.1 °C accuracy
- Twin direct-cooling system with manual defrost
- Microprocessor controller with LED display
- Alarms: temperature, ambient/condenser high-temp, power failure, low battery, sensor error, door ajar (remote alarm optional)
- 838 L / 29.59 cu ft capacity; 3 shelves; 60,000 × 2 ml cryo tubes
- Stainless-steel chamber; coated-steel shell; lockable, anti-condensation door
- Cable port and castors for easy integration and mobility
- Electrical: 115 V/60 Hz; 2030 W; ~14.3 kWh/24 h; 16 A

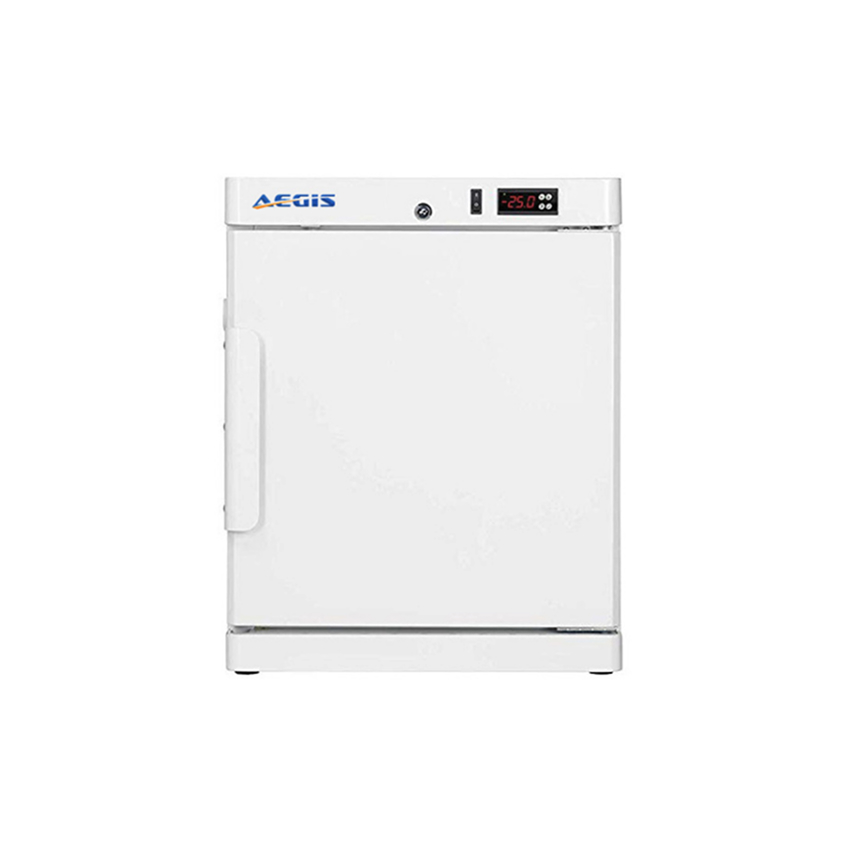

EL-F-2.4K, Elite Series : 2.4 cuft Solid Door Freezer
EL-F-2.4K, Elite Series : 2.4 cuft Solid Door Freezer
EL-F-2.4K, Elite Series : 2.4 cuft Solid Door Freezer
EL-F-2.4K, Elite Series : 2.4 cuft Solid Door Freezer |
Reliable −25 °C Storage, ENERGY STAR Certified Compact, undercounter design with forced-air system and variable (cycle) defrost for stable, efficient performance. |
|
2.4 cu ft, Adjustable Shelving Three white epoxy-coated shelves and a 0.5″ probe/data-logger port streamline storage and validation tasks. |
|
Audible & Visual Alarms Adjustable high/low temperature alarms with standard remote alarm terminals (RS232/RS485 optional). |
| Microprocessor Control & LED Display Top-mounted digital interface; factory preset −25 °C with −10 to −30 °C set-point range and USB data export. |
|
| Eco-Friendly & Low Energy R600a refrigerant and CFC-free insulation; ~0.75 kWh/24 h typical energy use; UL/cUL and VFC compliant. |
Key Features
- Undercounter compact freezer for pharmacies and labs
- Temperature range −10 to −30 °C (factory preset −25 °C)
- Forced-air system; cold-wall evaporator; variable cycle defrost
- Microprocessor controller with bright LED display; USB data export
- Audible/visual high & low temperature alarms; remote alarm port
- Solid, lockable door with perimeter heater; interior LED lighting
- 2.4 cu ft capacity; three epoxy-coated shelves; 0.5″ probe port
- ENERGY STAR certified; UL/cUL listed; VFC compliant
- 120 V/60 Hz; 15 A circuit; NEMA 5-15 plug with 10 ft cord
EL-F-4K, Elite Series : 4 cuft Solid Door Freezer
EL-F-4K, Elite Series : 4 cuft Solid Door Freezer
EL-F-4K, Elite Series : 4 cuft Solid Door Freezer
EL-F-4K, Elite Series : 4 cuft Solid Door Freezer |
Reliable −25 °C Storage, ENERGY STAR Certified 4 cu ft compact freezer with efficient R600a system, forced-air circulation, and variable cycle defrost for stable performance. |
|
Compact Capacity with Adjustable Shelving 3 epoxy-coated wire shelves adjust in 1″ increments; 0.5″ probe/data-logger port simplifies validation. |
|
Audible & Visual Alarms High/low temperature alarms with adjustable set points; remote alarm terminals included (RS232/RS485 optional). |
| Microprocessor Control & LED Display Top-mounted, bright LED readout for quick checks; factory preset at −25 °C with −10 to −30 °C set-point range. |
|
| Eco-Friendly & Low Energy R600a hydrocarbon refrigerant; ~0.97 kWh/24 h typical energy use; UL/cUL listed for quality and safety. |
Key Features
- 4 cu ft compact, solid-door pharmacy freezer
- Temperature range −10 to −28 °C; factory preset −25 °C
- Intelligent microprocessor controller with bright LED display
- Audible/visual high & low temperature alarms (adjustable)
- Forced-air system; cold-wall evaporator; variable cycle defrost
- Three epoxy-coated, 1″-adjustable wire shelves
- 0.5″ probe/data-logger access port; remote alarm contacts
- White powder-coated steel cabinet; CFC-free high-density insulation
- ENERGY STAR certified; UL/cUL listed; VFC compliant
- 120 V/60 Hz, 75 W; ~0.97 kWh/24 h; NEMA 5-15 plug (10 ft cord)
EL-F-10K, Elite Series : 10 cuft Solid Door Freezer
EL-F-10K, Elite Series : 10 cuft Solid Door Freezer
EL-F-10K, Elite Series : 10 cuft Solid Door Freezer
EL-F-10K, Elite Series : 10 cuft Solid Door Freezer |
Direct Cooling for Reliable −25 °C Storage Efficient cold-wall performance with manual defrost keeps temperatures stable across the cabinet. |
|
10 cu ft Capacity with 5 Shelves 281 L vertical freezer with five shelves for organized storage of pharmaceuticals and lab materials. |
|
Comprehensive Alarm Protection High/low temp, high ambient, condenser high-temp, door-open, sensor error, and remote alarm contact. |
| Dixell Control & LED Display Accurate microprocessor control with a clear red LED readout; preset −25 °C for pharmacy use. |
|
| Eco-Friendly Refrigerant R600a hydrocarbon system balances cooling performance with reduced environmental impact (≈ 2.8 kWh/24 h). |
Key Features
- Temperature range: −10 to −25 °C; factory preset −25 °C
- Direct cooling with manual defrost for steady performance
- Dixell controller with red LED display
- Alarm suite: high/low temp, high ambient, condenser high temp, door-open, sensor error, remote contact
- 281 L / 10 cu ft capacity with five shelves
- Galvanized steel exterior; powder-coated aluminum interior
- LED interior lighting, door lock, footing; 110 V / 60 Hz
- R600a refrigerant; 145 W; ~2.8 kWh/24 h energy consumption
- Options: USB port, temperature recorder, power-failure alarm

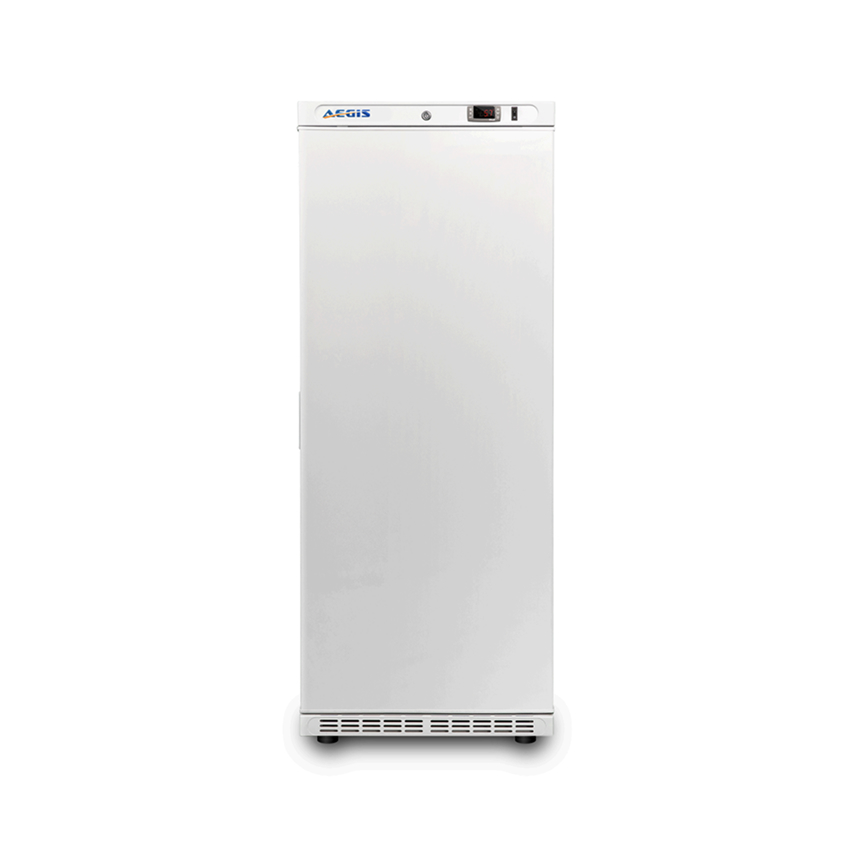

EL-F-14K, Elite Series : 14 cuft Solid Door Freezer
EL-F-14K, Elite Series : 14 cuft Solid Door Freezer
EL-F-14K, Elite Series : 14 cuft Solid Door Freezer
EL-F-14K, Elite Series : 14 cuft Solid Door Freezer |
Direct Cooling for Stable −25 °C Storage Efficient direct-cooling design delivers reliable low temperatures across the cabinet; manual defrost keeps performance consistent. |
|
13.77 cu ft Capacity with 6 Shelves 390 L vertical freezer with six adjustable shelves for organized storage of pharmaceuticals and lab materials. |
|
Comprehensive Alarm Protection High/low temperature, high ambient, condenser high-temp, door-open, sensor error, and remote alarm contact for safety. |
| Dixell Control & LED Display Accurate microprocessor control with a clear red LED readout for quick, reliable monitoring at a preset −25 °C. |
|
| Eco-Friendly R290 Refrigerant Hydrocarbon refrigeration balances cooling performance with reduced environmental impact; ~4.32 kWh/24 h at 110 V/60 Hz. |
Key Features
- Temperature range: −10 to −25 °C; factory preset −25 °C
- Direct cooling with manual defrost
- Dixell controller with red LED display
- Multi-alarm protection: high/low temp, high ambient, condenser high temp, door-open, sensor error, remote contact
- 390 L / 13.77 cu ft capacity with six shelves
- Galvanized steel exterior; powder-coated aluminum interior
- LED interior lighting and door lock
- R290 refrigerant; 180 W power; approx. 4.32 kWh/24 h
- Options: USB port, temperature recorder, power-failure alarm
EL-F-21K, Elite Series : 21 cuft Solid Door Freezer
EL-F-21K, Elite Series : 21 cuft Solid Door Freezer
EL-F-21K, Elite Series : 21 cuft Solid Door Freezer
EL-F-21K, Elite Series : 21 cuft Solid Door Freezer |
Forced-Air Cooling & Auto Defrost Stable, uniform freezing with automatic defrost every 8 hours (below −18 °C) to maintain performance. |
|
21.19 cu ft Capacity with Adjustable Shelving 600 L storage with five shelves and a foaming door for efficient, secure cold retention. |
|
Comprehensive Alarm & Monitoring High/low temp alarms, door-open alarm, remote alarm contact, and temp recording; power-failure alarm optional. |
| Dixell Control & LED Display Accurate microprocessor control with a clear red LED readout for quick, reliable status checks. |
|
| Eco-Friendly Refrigeration Efficient R290 hydrocarbon refrigerant with low daily energy use (≈ 6.8 kWh/24 h at 110 V/60 Hz). |
Key Features
- Temperature range: −10 to −30 °C; factory preset −25 °C
- Forced-air cooling with automatic defrost (every 8 hours below −18 °C)
- Dixell controller with red LED display for precise, reliable control
- Multi-alarm protection: high/low temp, door-open, remote alarm; power-failure optional
- 21.19 cu ft / 600 L capacity; five shelves; foaming door for insulation
- LED interior lighting, door lock, castors, and test port
- R290 refrigerant; approx. 460 W; ~6.8 kWh/24 h energy consumption
- USB port and temperature recorder available as options
