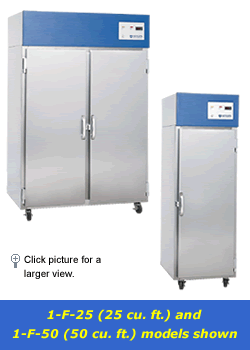

| Series 1 Solid Door Laboratory Freezers (-22° Celsius) |
Designed to meet the needs of the scientific and research environments, the Series 1 Laboratory Freezers combine standard features with superior flexibility in design for many different lab environments.
These units are manufactured in 22, 48, and 75 cu. ft. sizes to fit into most laboratory situations. Choose the right system for your needs below. |
| 3 Available Sizes - 22, 48, and 75 cu. ft. units can meet the needs of most lab environments |
| Aluminum or Stainless Steel Finishes - Units can be configured to lab specifications |
| RS485 Data Port - Units can be interfaced with Lab Management System for data recording |
| Compressor Mounting Options - Top mount compressor standard. Bottom mount available as an option. |
| Digital Control System - On unit, easy to use digital controls for temperature control accuracy |
| 3 Door Unit Available - Hard to find for larger applications |
| 220 V Available - Meets international requirements |
|
 |
|
|
| Model Selection Chart |
| Model No. |
L |
D |
H |
Shelves |
CU CAP |
Amps |
HP |
WT |
Volt |
Cord |
Doors |
| 1-F-22 |
26.25" |
33.875" |
78" |
3 |
22 |
12 |
1/2 |
370 |
115 |
Yes |
1 |
| 1-F-48 |
52.25" |
33.875" |
78" |
6 |
48 |
14.6 |
3/4 |
550 |
115 |
Yes |
2 |
| 1-F-75 |
78" |
33.875" |
78" |
9 |
75 |
10.3 |
1 |
790 |
115/ 208/ 230 |
No |
3 |
|
| Add 6" to height for legs. Add 5" to height for casters. Heated Glass Doors (HTD-Doors) also available. |
|
|
| Standard Feature List |
| • |
Stainless steel doors with lock |
| • |
Aluminum interior with coved corners |
| • |
Exterior aluminum outside ends |
| • |
Three Epoxy coated shelves adjustable at 1/2" increments behind each door |
| • |
Interior lighting |
| • |
Foamed in place urethane insulation, including doors |
| • |
Top mount models are standard |
| • |
Digital control with RS485 data port |
|
| Optional Feature List |
| • |
Stainless steel interior |
| • |
Stainless steel outside ends |
| • |
Interior duplex receptacles |
| • |
2" Access ports in side walls with interior and exterior closures |
| • |
Casters |
| • |
Fluorescent lighting |
| • |
Roll out drawer |
| • |
7 Day Temperature Recorder |
| • |
Alarm Systems - Single or Multi probe alarm with the following description: Audible/visual, high, low temperature alarm with continuous digital display battery back up and remote contacts |
| • |
Stainless steel shelves |
| • |
Special hinging |
| • |
Half doors instead of full doors |
| • |
Heated glass doors |
| • |
RS232 converter |
|
|
|
